| Customization: | Available |
|---|---|
| Warranty: | 24months |
| Type: | Drum Wood Sander |
| Quantity: | |
|---|---|

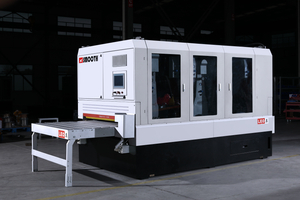

QCMAC Wide Belt Sander with Electromagnetic Segment Pad (Chinese)-Polishing Machine
The whole machine frame uses profile welding with articial aging treatment, making sure machine body to be well maintained.
Servo motor lifting assures an accuracy of 0.01mm.
Central information processing system, every electromagnet can be independently adjusted and controlled.
Uniform sanding pressure Force plus special Angle protection function makes a better suface.
The feeding end is equipped with a sensor, which reduces the scanning distance to 16-22mm, so as to control the scanning accuracy more precisely.
Main motors with thermal relay protection;
SIMENS PLC
SIMENS Touch screen.
3-color caution light;
Emergency stop button on both in-feed and out-feed ends;
Belt error/pressure error/ feeding error/ protection.
| Woring Width | 60-1300mm |
| Working Thickness | 3-110mm |
| Working Length | ≥450mm |
| Sanding Belt Size | 150*4500mm & 1330*2500mm |
| Feeding Speed | 7-20m/min |
| Main Motor Power | 15Kw+15Kw+11Kw |
| Working Pressure | 0.55Mpa |
| Compressed Air | 1.8m³/min |
| Dust Collection Air Volume | 16000m³/h |
| Dust Collection Air Speed | 25m/s |
