| Customization: | Available |
|---|---|
| Warranty: | 24months |
| Type: | Drum Wood Sander |
| Quantity: | |
|---|---|

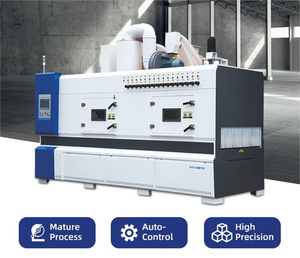

Wood Texturing Sanding Machine
The whole machine frame uses profile welding with articial aging treatment, making sure machine body to be well maintained.
Servo motor lifting assures an accuracy of 0.01mm.
Central information processing system, every electromagnet can be independently adjusted and controlled.
Uniform sanding pressure Force plus special Angle protection function makes a better suface.
The feeding end is equipped with a sensor, which reduces the scanning distance to 16-22mm, so as to control the scanning accuracy more precisely.
Main motors with thermal relay protection;
SIMENS PLC
SIMENS Touch screen.
3-color caution light;
Emergency stop button on both in-feed and out-feed ends;
Belt error/pressure error/ feeding error/ protection.
| Woring Width | 60-1350mm |
| Working Thickness | 3-110mm |
| Working Length | ≥450mm |
| Sanding Belt Size | 150*4500mm & 1330*2500mm |
| Feeding Speed | 7-20m/min |
| Main Motor Power | 15Kw+15Kw+11Kw |
| Working Pressure | 0.55Mpa |
| Compressed Air | 1.8m³/min |
| Dust Collection Air Volume | 16000m³/h |
| Dust Collection Air Speed | 25m/s |
Here's what sets SMOOTH apart from the competition:
1. Unmatched Precision: Our sanders are engineered to deliver precise and uniform sanding results, giving your projects a flawless finish every time.
2. Superior Durability: Built to withstand rigorous use, our sanders are constructed from premium materials to ensure long-lasting performance, saving you time and money in the long run.
3. Innovative Features: From variable speed controls to dust collection systems, our sanders are equipped with cutting-edge features designed to enhance productivity and user comfort.
4. Exceptional Customer Support: At SMOOTH, we pride ourselves on providing outstanding customer service every step of the way. Whether you have questions about our products or need assistance with your order, our dedicated team is here to help.
